Precision Cooling for Consistent Anodizing Quality.

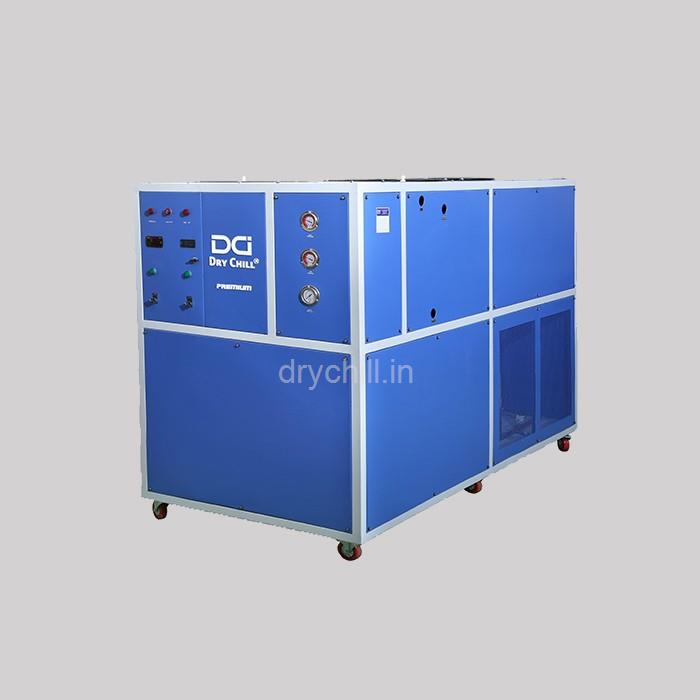

Anodizing processes generate significant heat during electrochemical reactions, which can directly impact coating thickness, surface finish, and color consistency. Dry Chill Anodizing Chillers are specially engineered to maintain precise temperature control of anodizing baths, ensuring stable electrolyte conditions and superior surface quality.

Our chillers are designed to handle the high thermal loads and corrosive environments associated with anodizing operations. Built with energy-efficient refrigeration systems, corrosion-resistant components, and precise temperature regulation, they deliver reliable and consistent cooling performance—enhancing production efficiency and reducing downtime.

Whether for aluminum anodizing plants, decorative finishing lines, or hard anodizing applications, our chillers provide a dependable cooling backbone that supports quality, productivity, and longevity of your equipment.


Parameter	Specification
Cooling Capacity	3 TR to 200 TR (custom-built for process requirements)
Temperature Range	+5°C to +25°C (adjustable)
Temperature Control Accuracy	±0.5°C with PID-based microprocessor controller
Refrigerant	R-407C / R-410A / R-134a / Eco-friendly options available
Compressor Type	Hermetically sealed scroll / semi-hermetic screw compressor
Condenser Type	Air-cooled (with axial / EC fans) or Water-cooled (shell & tube)
Evaporator Type	SS316L plate heat exchanger or shell & tube type
Chilled Fluid	Water / Glycol mixture / Sulfuric acid bath solution (with compatible materials)
Pump & Piping Material	SS316 / CPVC / PP / PVDF for corrosion resistance
Controls	PLC-based control panel with temperature, flow, and pressure monitoring
Electrical Supply	3 Phase, 415V, 50 Hz (customizable)
Safety Features	HP/LP cut-out, overload protection, anti-freeze, flow switch, phase protection
Optional Features	Remote monitoring, variable speed drives, redundancy design, energy metering


SYSTEM  ADVANTAGES
* Corrosion-resistant construction with non-ferrous wetted parts for acidic  environments
* High-efficiency heat exchangers to optimize energy use and minimize process  variation
* Compact modular design for easy integration with existing anodizing tanks and  process lines
*Continuous duty rated for 24/7 industrial operation
